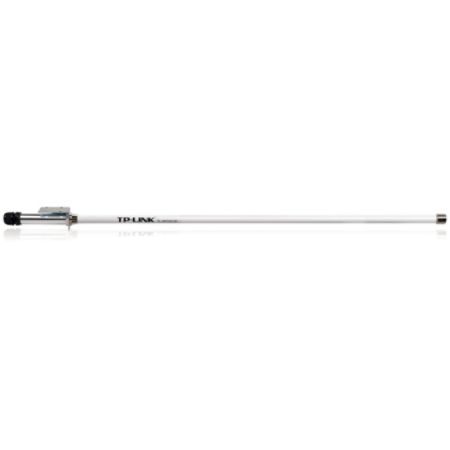

TP-LINK TL-ANT2412D 2.4GHz 12dBi Outdoor Omni-directional Antenna, N Female connector, weather resistant Item # 585319
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
585319
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
This antenna operates in the 2.4-2.5 GHz band and is designed for use outdoors.
Product Details
| Item # | 585319 |
| Manufacturer # | KA4962 |
| height | 67.7 in |
| Vertical Beamwidth | 6° |
| Directivity | Omni-directional |
| width | 1.9 in |
| depth | 1.9 in |
| Product Name | TL-ANT2412D Outdoor Omnidirectional Antenna |
| Antenna Gain | 12 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| Number of Connectors | 1 |
| Compatibility | TL-WA501G Wireless Access Point; TL-ANT24EC6N Antenna Extension Cable; TL-ANT24PT Pigtail Cable |
| Application/Usage | Wireless Data Network |
| Polarization | Linear Vertical |
| brand name | TP-LINK |
| frequency | 2.40 GHz to 2.50 GHz |
| Frequency Band Type | UHF |
| impedance | 50 Ohm |
| Application | Outdoor |
| Voltage Standing Wave Ratio (VSWR) | 1.92:1 |
| connector type | N-Type |
| model name | TL-ANT2412D |
| Horizontal Beamwidth | 360° |
| Frequency Range | 2.4 - 2.5 GHz |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
The 2.4GHz 12dBi Outdoor Omni-directional Antenna TL-ANT2412D operates in the 2.4-2.5 GHz band and provides 12dBi omni-directional operation which largely extends the wireless range and delivers much better wireless performance. The TL-ANT2412D offers a N female connector guaranteeing wider compatibility with most wireless equipment. Also, the weather proof design ensures that it can work normally for various demanding outdoor solutions.The Outdoor Omni-Directional Antenna emits a powerful amplified signal over a 360 degree radius, delivering a strong multidirection signal from an Access Point or Bridge. If you have multiple locations or buildings where you would like to integrate your wireless network, simply place the TL-ANT2412D in between the buildings with your Access Point. It is most effective when placed at the top of buildings.
-
Easy To Use
Installation of the TL-ANT2412D is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
See More:
Features
- Provides 12dBi signal gain
- Provides N Female connector
- Be applied to various weather conditions
- Compatible with all the 802.11n/b/g products (2.4GHz)
Specifications
| ANTENNA | |
|---|---|
| Dimension | 47.2 in（1200mm） |
| Weight | 1.1 lb(0.5kg) |
| Frequency | 2.4GHz~2.5GHz |
| Impedance | 50 Ohms |
| Gain | 12 dBi |
| Radiation | Omni-directional |
| VSWR(MAX.) | < 2.0 |
| HPBW/H( °) | 360° |
| HPBW/V( °) | 12° |
| Polarization | Linear, Vertical |
| Connector Type | N Female |
| Mounting | Pole Mount / Wall Mount |
| Application | Outdoor |
| Lightning Protection | DC Ground |
| Operating Temp. | -40℃~65℃(-40℉~149℉) |
| Storage Temp. | -40℃~80℃ (-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Safety, Emission and Others | CE, FCC, Compliant with RoHS |
Package Contents
- 12dBi Outdoor Omni-directional Antenna
- Installation mounting kits
- User Guide
Datasheet
-
TL-ANT2412D Datasheet
TL-ANT2412D Datasheet - opens PDF
PDF, 815K, 2 pages
